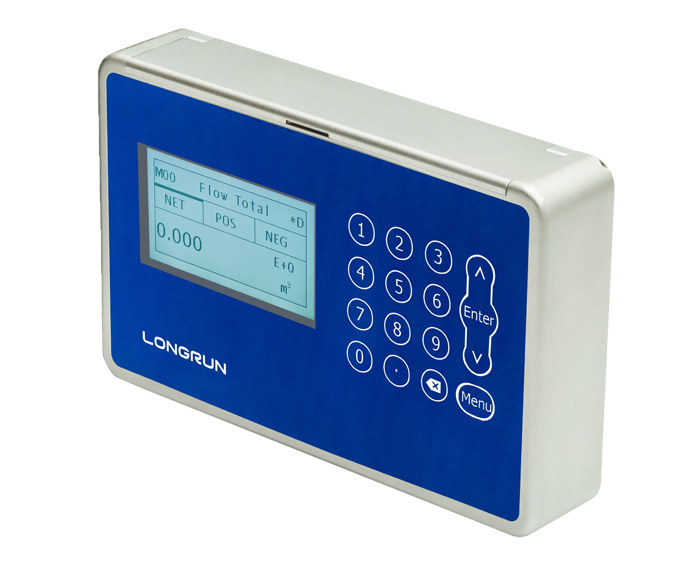

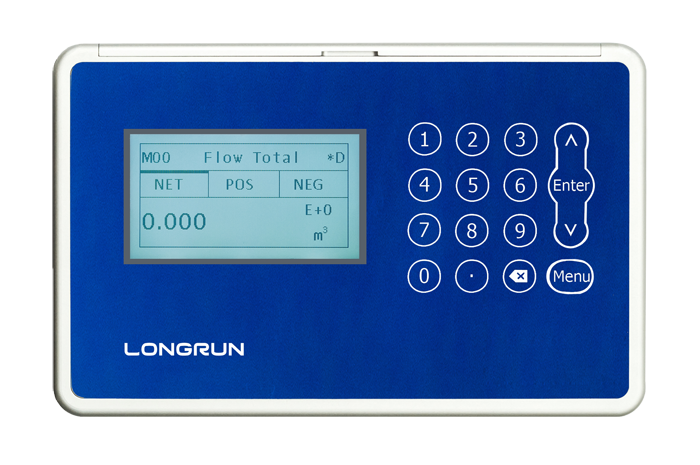

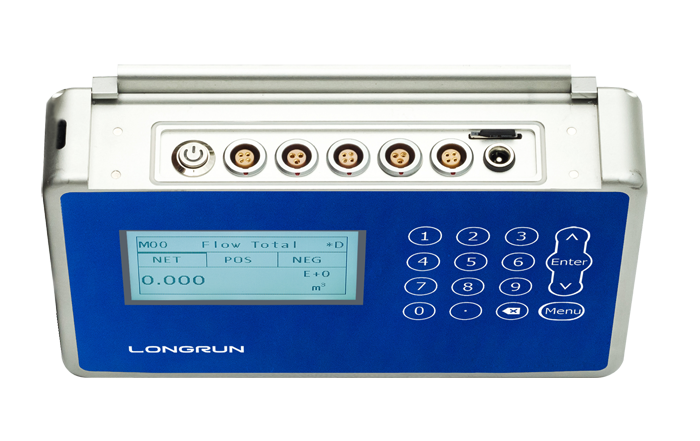

Name：Portable ultrasonic flowmeter
Model：LRF-3300H
Size：188mm*112mm*35mm
Features:
LRF-3300H is an ultrasonic flow meter based on transit-time schematic design.
LRF-3300H Designed using the digital technology and low-voltage integrated circuit,it has broadband pulse transmission.While principally designed for full-pipe and clean liquid applications.
LRF-3300H is tolerant of liquids with small amounts of air bubbles or suspended solids found in most industrial environments.Integration design and high integration reduce the link between PCB boards,more reliable.
LRF-3300H have friendly menu selections make flow meter simple and convenient to use.It can easy to check daily,monthly and yearly totalizer flow.Parallel operation of positive,negative and net flow totalizesr.
LRF-3300H Designed using the digital technology and low-voltage integrated circuit,it has broadband pulse transmission.While principally designed for full-pipe and clean liquid applications.
LRF-3300H is tolerant of liquids with small amounts of air bubbles or suspended solids found in most industrial environments.Integration design and high integration reduce the link between PCB boards,more reliable.
LRF-3300H have friendly menu selections make flow meter simple and convenient to use.It can easy to check daily,monthly and yearly totalizer flow.Parallel operation of positive,negative and net flow totalizesr.
.jpg)
.jpg)
| Performance | |
| Flow range | 0～±40 ft/s(0~±12m /s) |
| Accuracy | ±0.5% of measured value(±0.01m/s~12m/s) |
| Repeatability | 0.15% |
| Linearity | ±0.51% |
| Pipe Size | 1 inch to 200 inches(25mm to 5000mm) |
| Functional | |
| Output | Analogue output: 4-20mA, (Max load 750Ω) |
| Power Supply | Built-in lithium battery（16 hour) |
| Keypad | 20 key with tactile action |
| Display | 3.5＂TFT LCD 480*320 |
| Temperature | Transmitter: -40°C ~ 60°C(-40℉~140℉) Transducer: -40°C ~ 80°C(-40℉~176℉)(Standard) |
| Humidity | UP to 99%RH, non-condensing |
| Physical | |
| Transmitter | Die-cast aluminum |
| Transducer | Cable Length(Std.):16 ft(5m) Extension length:66ft(20m),per 16ft extension |
| Weight | Transmitter: approximately 1.85 lb(0.84kg) Transducer:approximately 2.2 lb(1.29kg)(standard) |
