Name：Ultrasonic Heat Module
Model：LRF-2000M-R
General Introduction:
LRF-2000M-R, the ultrasonic heat module, is best choice for system integration or network measurement because of its small volume, light weight, easy operation, power function and lowest cost
Features:
Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channel, can be used for flow / heat switch;
Current input: 4-20mA, three channel, can be used for data collector;
Tri-wire resistance signal input (PT100): two channel, can be used for calorimeter.
Far transmission distance
Connect flow/heat module and secondary meter through RS-485 interface, transmission distance up to 1000m.
Solve the problems of high cost of special cable, poor anti-interference, short transmission distance etc.
Wide measuring range
Several types transducer for selection, pipe size from DN32mm to DN6000mm
High Accuracy measuring
General Introduction:
LRF-2000M-R, the ultrasonic heat module, is best choice for system integration or network measurement because of its small volume, light weight, easy operation, power function and lowest cost
Features:
Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channel, can be used for flow / heat switch;
Current input: 4-20mA, three channel, can be used for data collector;
Tri-wire resistance signal input (PT100): two channel, can be used for calorimeter.
Far transmission distance
Connect flow/heat module and secondary meter through RS-485 interface, transmission distance up to 1000m.
Solve the problems of high cost of special cable, poor anti-interference, short transmission distance etc.
Wide measuring range
Several types transducer for selection, pipe size from DN32mm to DN6000mm
High Accuracy measuring
Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
Optional transducer :
Optional transducer :
| Types | Picture | Spec. | Model | Measurement Range | Liquid Temperature | Accuracy |
| Clamp on |   |
Small Size | TS-2 | DN32~DN100 | -30~90℃ |
Flow±1% Heat±2% |
  |
Medium Size | TM-1 | DN50~DN700 | -30~90℃ | ||
  |
Large Size | TL-1 | DN300~DN6000 | -30~90℃ | ||
| High Temperature Clamp on |
  |
Small Size | TS-2-HT | DN32~DN100 | -30~160℃ | |
  |
Medium Size | TM-1-HT | DN50~DN700 | -30~160℃ | ||
| Insertion |   |
Standard | TC-1 | DN80~DN6000 | -30~160℃ | |
  |
Lengthen | TLC-2 | DN80~DN6000 | -30~160℃ | ||
| Prover Section | Prover Section | G1 | DN15 -1000mm (see appendix 2) |
-30~160℃ | Flow±0.5% | |
| Power Supply | Primary meter: 8-36VDC , Secondary meter: AC220V or DC24V | |||||
| Input | 3 channel 4-20mA analog input, 2 channel Tri-wire resistance signal input (PT100) |
|||||
| Output | Isolation RS-232/RS-485 output, 2 channel isolation OCT output 1 channel isolation 4-20mA output (two-wire system) |
|||||
| Communication Protocols | Compatible with MODBUS, METER-BUS protocol, Fuji extended protocol and general water meter protocol |
|||||

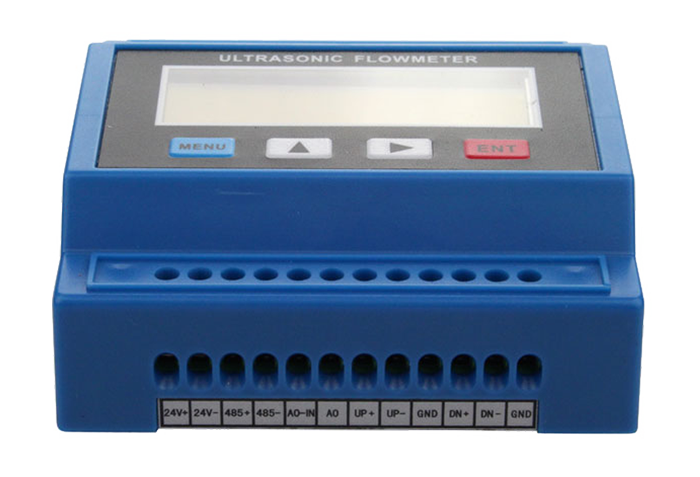

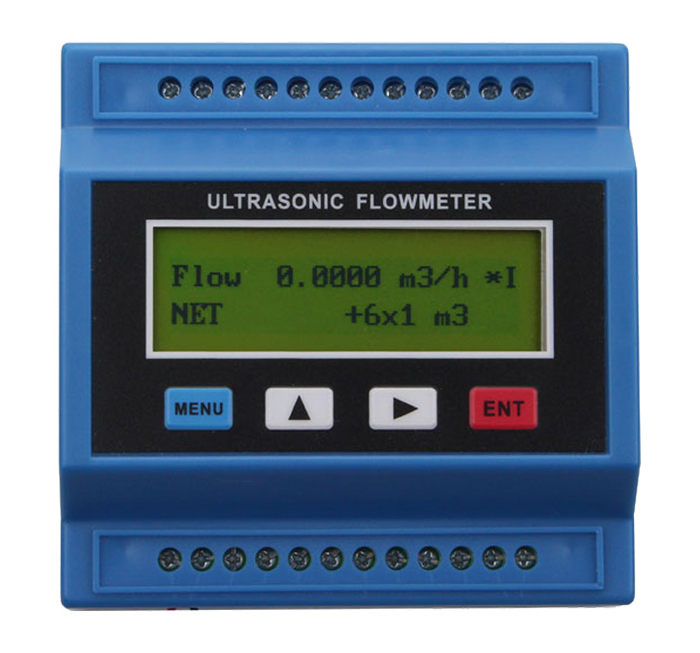

Transmitter：

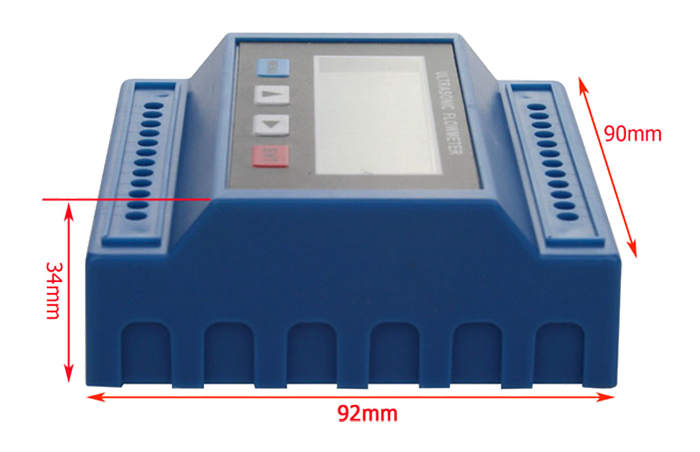

size：
Installation diagram：
Structure of clamp-on measuring
Structure of insertion measuring
Structure of Prover Section measuring
| Item | Performance and Parameter | |
| Convertor | Principle | transit-time ultrasonic flowmeter |
| Accuracy | Flow: over 1%-2%(battery-powered supply over ±2% )，Heat: over ±2%，Repeatability: over 0.2% | |
| Operation | 4 keyboards operation | |
| Signal Output | 1 way 4~ 20mA output, electric resistance 0~ 1K，accuracy0. 1% | |
| 1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms，default is 2 0 0 ms) | ||
| 1 way Relay output | ||
| 3 way 4~ 20mA input, accuracy 0. 1%，acquisition signal such as temperature, press and liquid level | ||
| Signal Input | Connect the temperature transducer Pt100, can finish the heat/energy measurement | |
| Data interface | Insulate RS485 serial interface, upgrade the flew meter software by computer, support the MODBUS, METER-BUS etc. | |
| Special Cable | Twisted-pair cable, generally, the length under 50 meters;Select the RS485 communication. The transmission distance can over 1000m. | |
| Pipe Condition | Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 32mm-6000mm | |
| Straight length pipe | Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump. | |
| Measuring Medium | Type of Liquid | Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids |
| Temperature | Standard Transducer: -30--90℃; High-temperature transducer: -30--140℃ | |
| Turbidity | No more than 10000ppm and less bubble | |
| Flow rate | 0～±10 m/s | |
| Working Environment | Temperature | Main Unit: -20--60℃ |
| Humidity | Main Unit: 85% RH; Flow Transducer: Ip67 | |
| Power Supply | DC8~36V or AC10~30V | |
| Consumption | 1.5W | |
