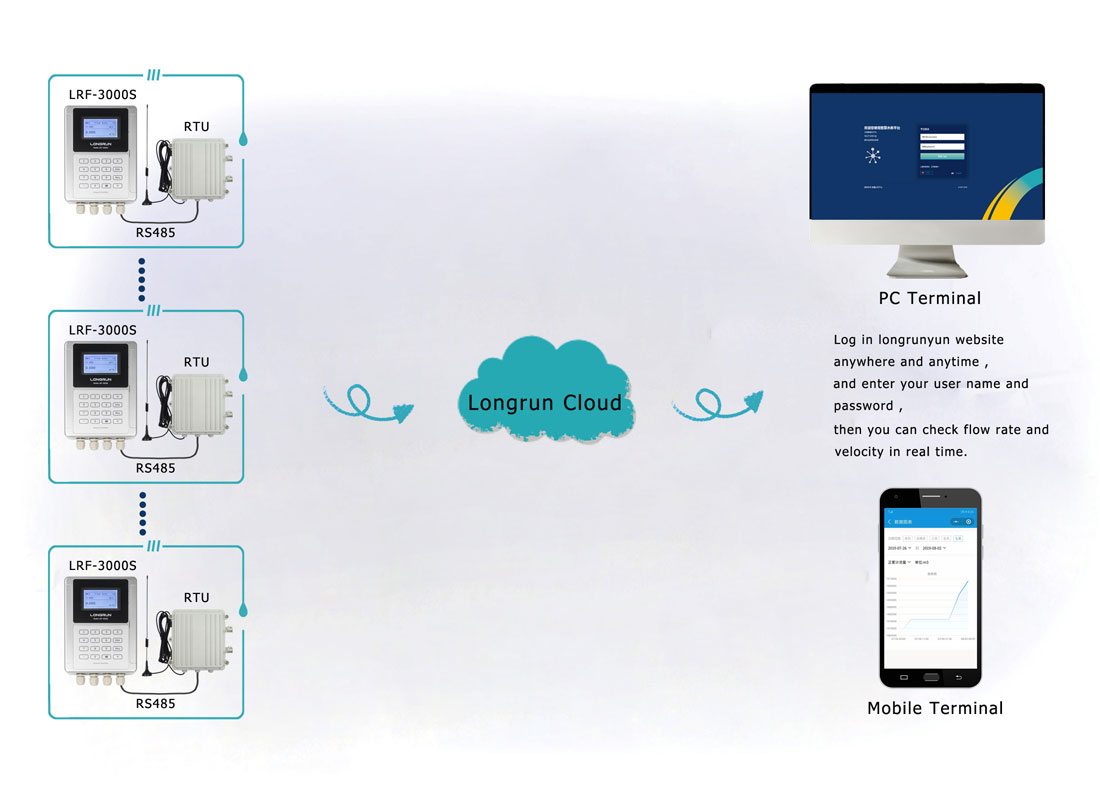

Longrun Cloud Intelligent Cloud Platform
Longrun Cloud Intelligent Cloud Platform please login： www.longrunyun.com
Environmental-friendly Solar Power System
Presentation Overview
•Environmental-friendly solar power system is composed of a solar panel, intelligent controller (hereinafter referred to as "controller"), and maintenance-free rechargeable battery.
•Environmental-friendly solar power system is composed of a solar panel, intelligent controller (hereinafter referred to as "controller"), and maintenance-free rechargeable battery.
•The working principle of the solar power system: the solar panel converts solar radiation into electricity during the day-time to recharge the maintenance-free rechargeable battery and then supply power to the ultrasonic flow meter. The controller protects the battery from over-charge, over-discharge, anti-charge and keeps the stability of the voltage output, etc.
•Equipment list :
Ultrasonic flow meter

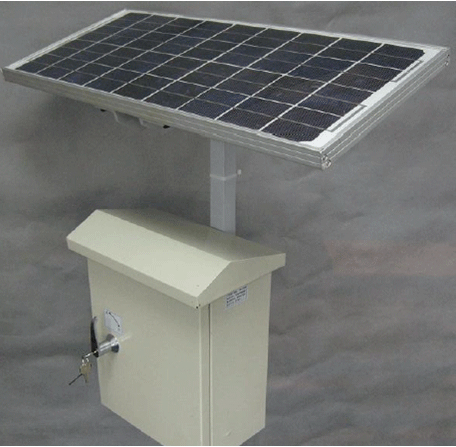

Solar panel
Stand with enclosure
Battery
Charger
Solar Power

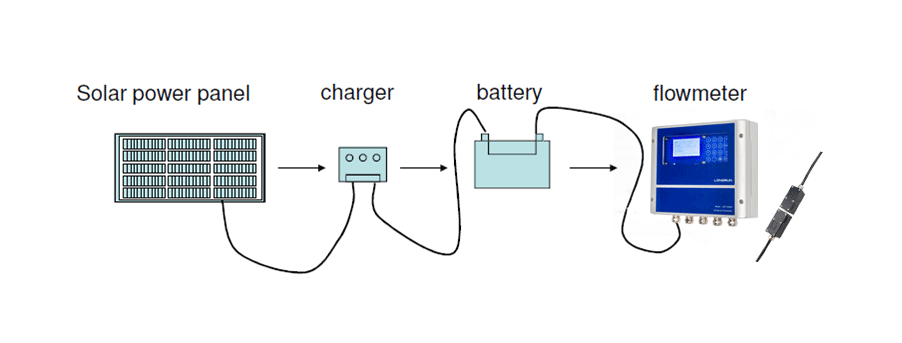

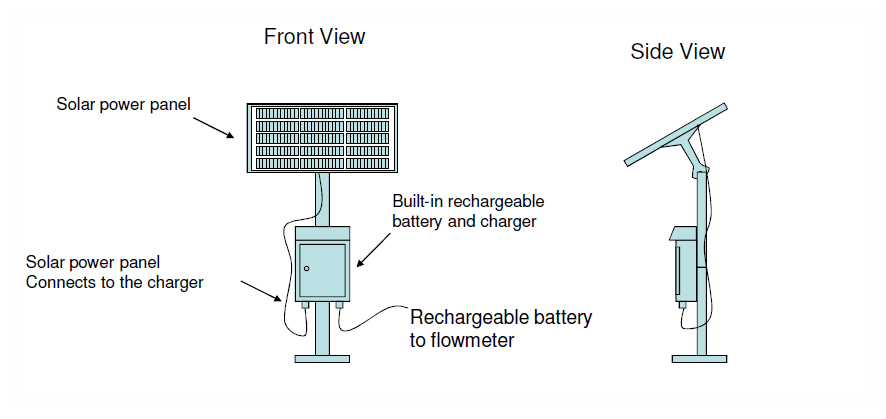

CONNECTION
Main technical parameters
Solar Power
 |
CONNECTION
 |
Main technical parameters
|
Solar Panel |
18V/22W |
|
Battery |
12V/33Ah |
|
Output Voltage |
12V/500mA |
|
Temperature Range |
0~50℃ |
|
Flow meter Watts |
Less than 4W/ hour |
Operation continuously for 120 hours, about 5 days, is the result of a different series tests under by turning off the backlight, with 4-20mA no load and with the relay not operating.

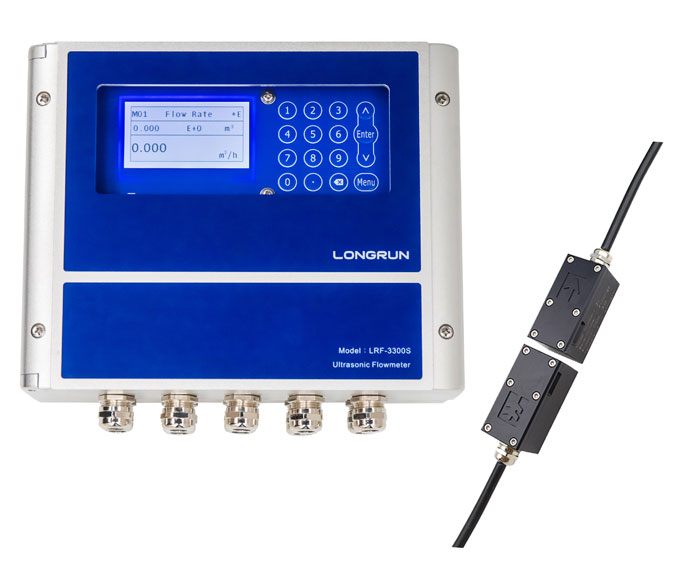

Ultrasonic flow meter
Accessories

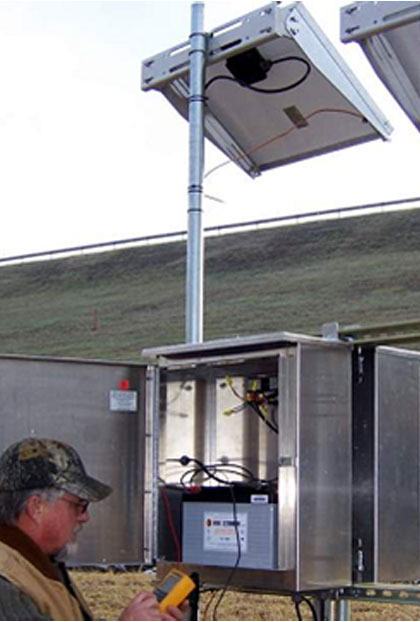

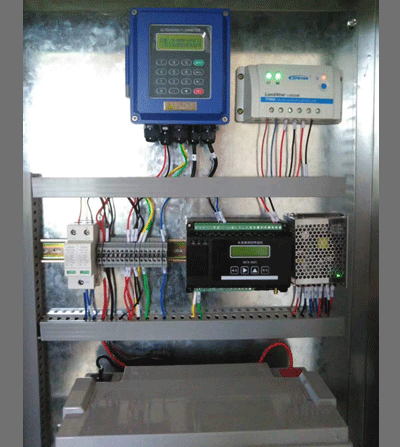

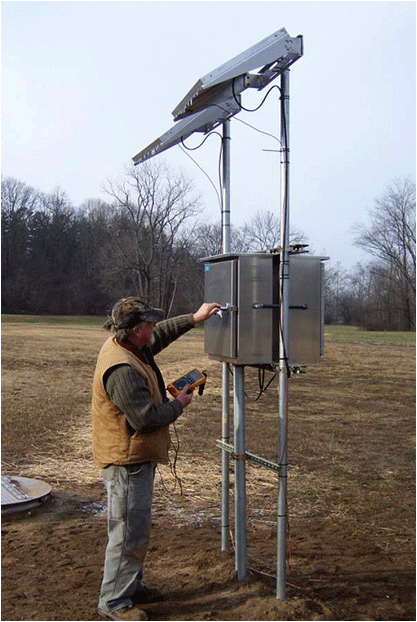

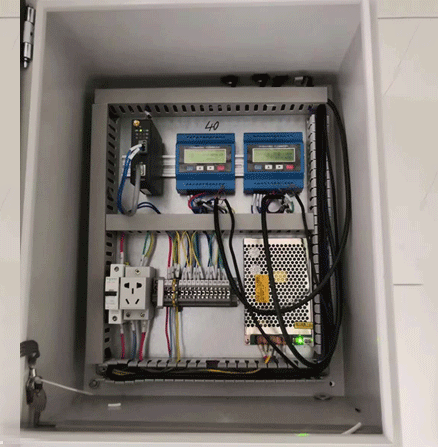

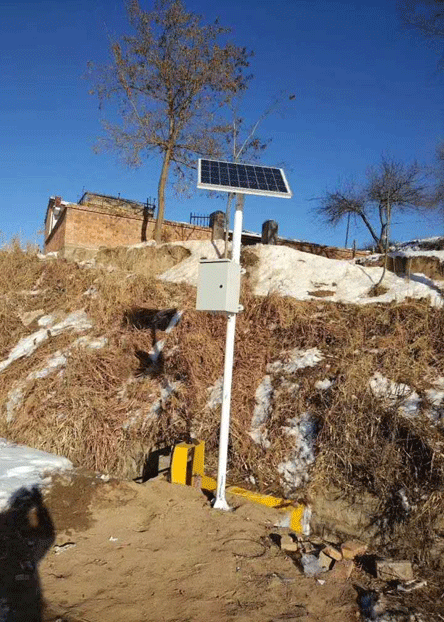

Application photos
 |
Accessories
 |
 |
 |
Application photos
 |
 |
 |
