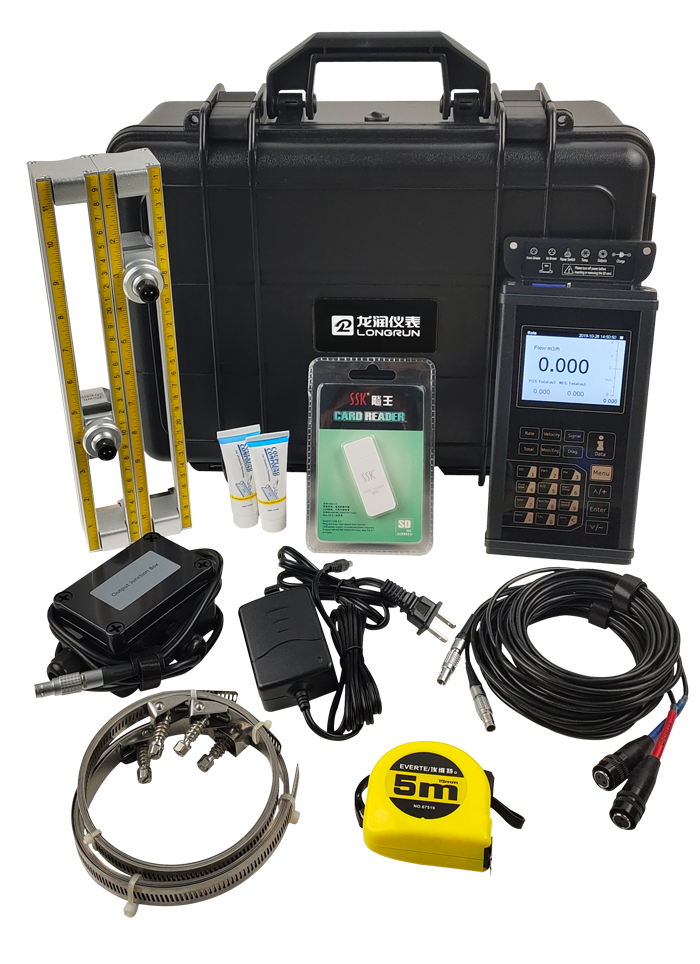

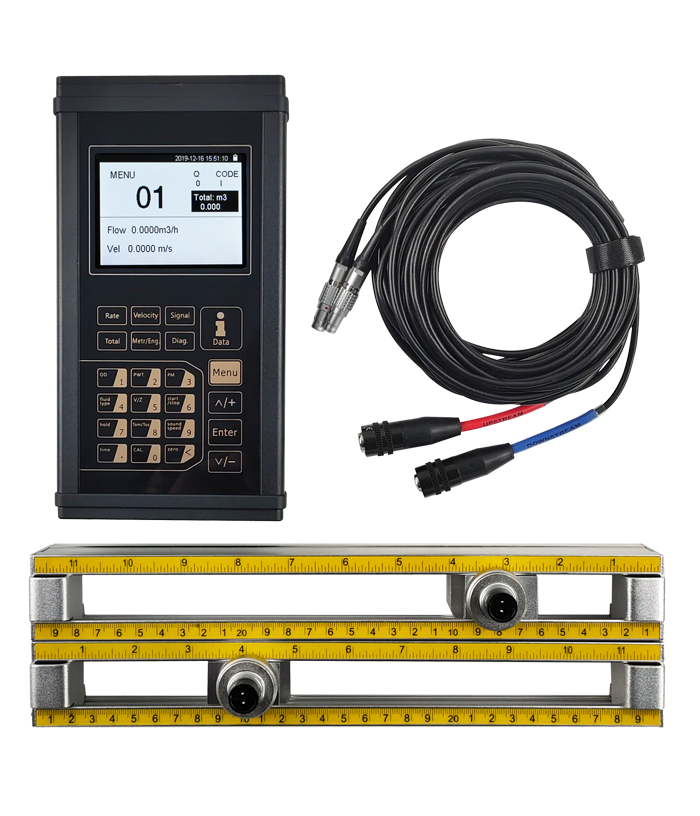

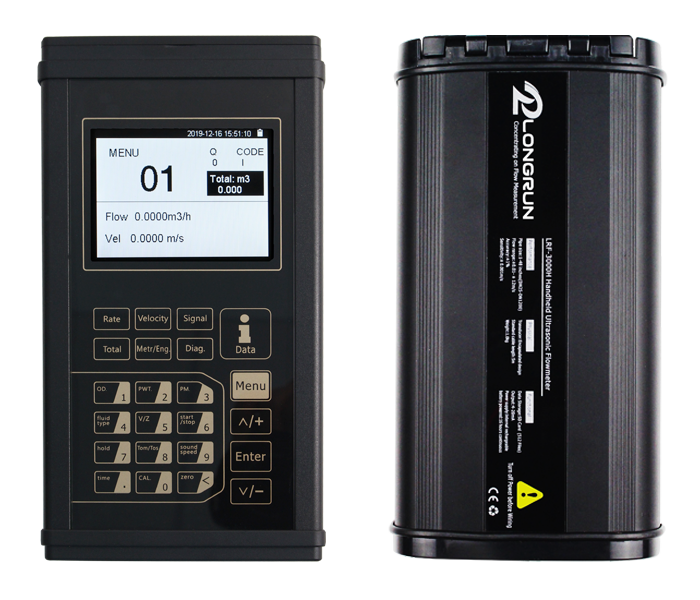

Name：Handheld Ultrasonic Flow Meter
Model：LRF-3000H
Size：188*112*35mm
Features:
LRF-3000H is an ultrasonic flow meter based on transit-time schematic design.
LRF-3000H Designed using the digital technology and low-voltage integrated circuit,it has broadband pulse transmission.While principally designed for full-pipe and clean liquid applications.
LRF-3000H is tolerant of liquids with small amountsof air bubbles or suspended solids found in most industrial environments.Integration design and high integration reduce the link between PCB boards,more reliable.
LRF-3000H have friendly menu selections make flow meter simple and convenient to use.It can easy to check daily,monthly and yearly totalizer flow.Parallel operation of positive,negative and net flow totalizesr.
Widely used in chemicals, Irrigation, industrial process water, water supply, water treatment, boiler, etc.
| Performance | |
| Flow range | 0～±40 ft/s(0~±12m /s) |
| Accuracy | ±1.0% of measured value(±0.01m/s~12m/s) |
| Repeatability | 0.2% |
| Linearity | ±0.1% |
| Pipe Size | 1 inch to 80 inches(25mm to 2000mm) |
| Functional | |
| Output | Analogue output: 4-20mA, (Max load 750Ω) |
| Power Supply | Built-in lithium battery（16 hour) |
| Keypad | 20 key with tactile action |
| Display | 2.8＂TFT LCD 320*240 |
| Temperature | Transmitter: -40°C ~ 60°C(-40℉~140℉)
Transducer: -40°C ~ 80°C(-40℉~176℉)(Standard)
|
| Humidity | UP to 95%RH, non-condensing |
| Physical | |
| Transmitter | Die-cast aluminum |
| Transducer | Cable Length(Std.):16 ft(5m)
Extension length:66ft(20m),per 16ft extension
|
| Weight | Transmitter: approximately 1.85 lb(0.84kg)
Transducer:approximately 2.2 lb(1.29kg)(standard)
|
