Dual channel insertion ultrasonic flowmeter

  • Introduction
  • Picture
  • Specification
  • Download
  • Installation Video
  • Inquiry

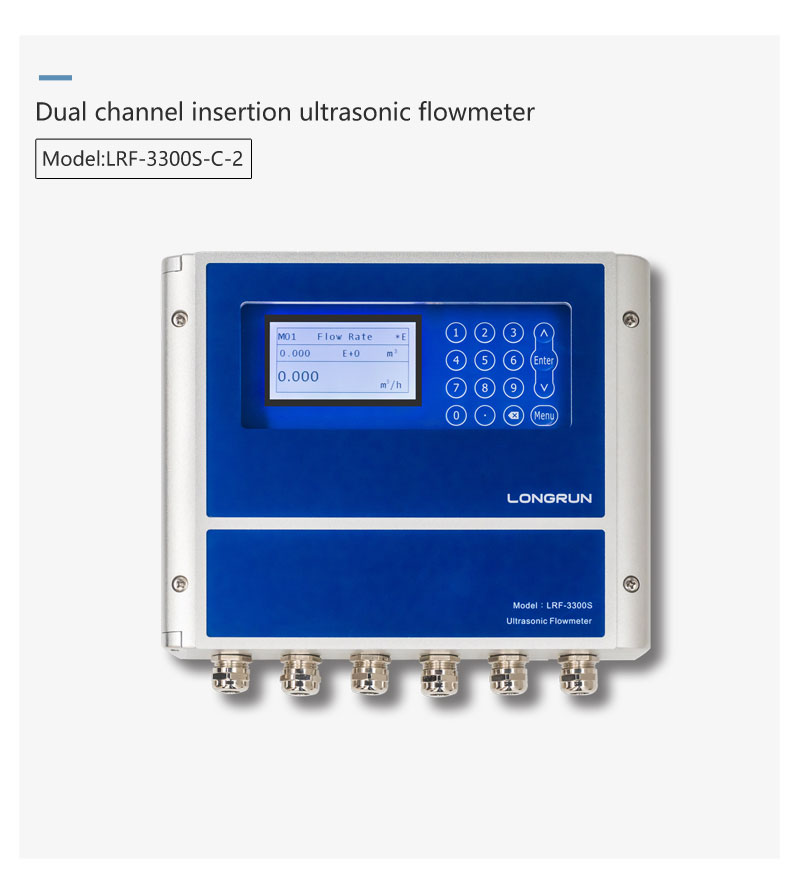

Name:Dual channel insertion ultrasonic flowmeter
General Introduction:
LRF-3300S-C-2 is a premier ultrasonic flowmeter for flexibility and permanent installation. The dual-channel design allows the user to install two pairs of transducers on a single pipe for locations whichcould make the measurement high accuracy (+/- 0.5%) and more stable performance.
LRF-3300S-C-2 providing the user with a comprehensive specification and a list of configuration options. The practical modular design and the wide variety of different transducer types available ensure this instrument is suitable for everything from simple water flow measurements to energy flow monitoring and automated process control.
Dual flow monitoring
Process outputs including current, pulse, relay
Communication options RS 485 (Modbus) and HART* compatible output
16G data logger and software for sampling and data transfer
Optional heat/ cool (energy) measurement functionality
Flow range ±0.09ft/s ~ ±40ft/s (±0.03m/s ~ ±12m/s)
Accuracy ±0.5% of reading (for ±1.5ft/s~±40ft/s)
Repeatability 0.15% of measured value
Linearity ±0.5%
Pipe size 1"to 200" (25mm to 5000mm). Pipe size under 1" is an option
Outputs Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)
Communication RS485,HART*(option)
Memory TF card (32G)
Power supply 90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC
Display 240*128 back lit LCD
Temperature Transmitter: -40℉~140℉(-40℃~60℃)
Humidity Up to 99% RH,non-condensing
Transmitter IP65
Transducer IP68
Encapsulated design
Double-shielded transducer cable
Standard/maximum cable length:30ft/900ft(9m/274m)
