F6 Flow Watch

  • Introduction
  • Picture
  • Specification
  • Download
  • Installation Video
  • Inquiry

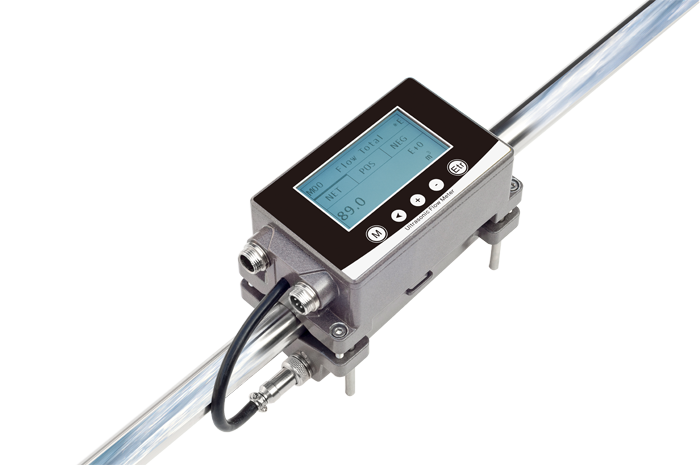

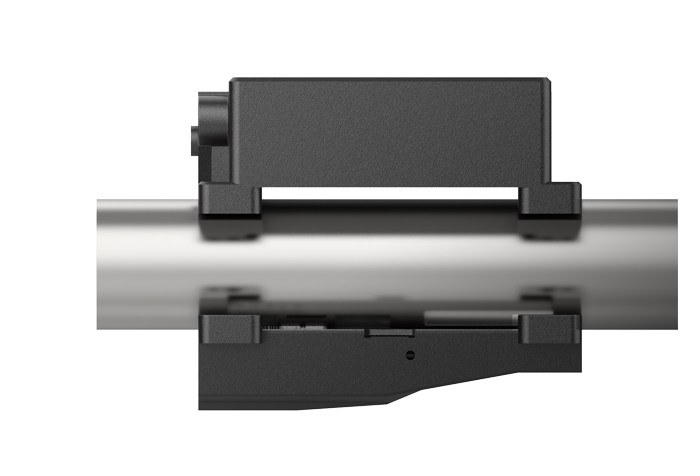

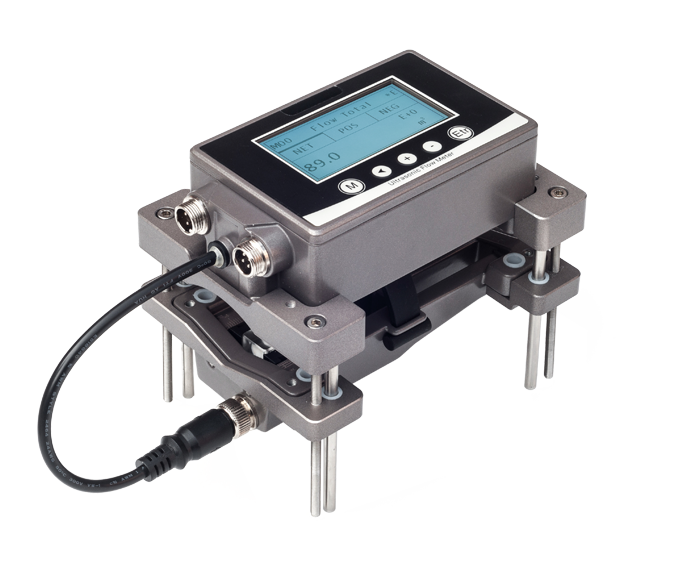

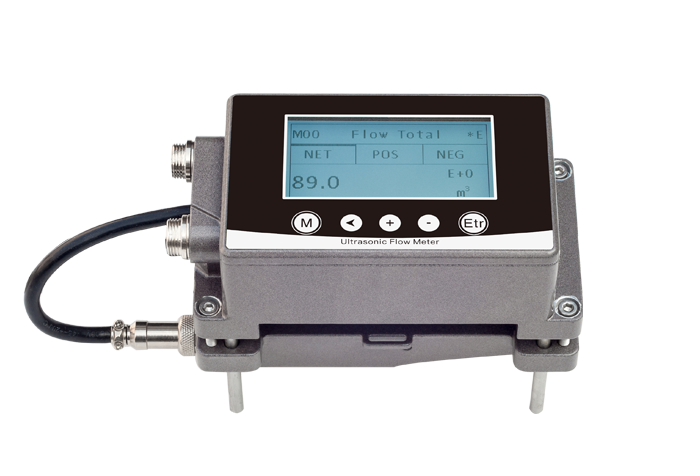

NameIntegrated external clamp ultrasonic flowmeter
Model:F6

General Introduction:

Special clamp ultrasonic flowmeter for small pipe diameter, dn15-DN40 is the first choice for small pipe diameter. Main features:

1, large LCD 256*128 backlight LCD;

2, acrylic LOGO label, convenient OEM labeling;

3, adjustable sensor distance, DN15-DN40 general;

4, M12 aviation plug, no wiring;

5, standard 4-20mA and RS485 interface.










Integrated external clamp ultrasonic flowmeterwaijiachaoshengliulangjiflowmeterUltrasonic Flow MeterUltrasonic Flow Meter

Supported pipeline material metal/plastic
Supported liquid medium water/other (single no solid particles and impurities)
Supported medium temperature Standard:-10~65℃;  High Temp type:-10~115℃
Default low flow rate excision value 0.1m/s
Display mode  256*128 backlit LCD
Response time 0.5~60 seconds
Accuracy ±2%, up to ±1% after calibration
Data storage period 300 ms
Memory backup EEPROM (Data storage length: over 10 years, data read/write frequency: over 1 million times)
Power supply and I/0 connector M12 aviation plug
Output  4-20mA, RS485
Power supply 10-24V VDC
Electric power  less than 3W
Protection circuit power reverse connection protection, power surge protection, each output short circuit protection, each output surge protection
Enclosure protection class  IP65
Ambient temperature -10 to 60℃ (without freezing)
Relative humidity 35 to 85% RH (non-condensing)
Seismic resistance 10 to 55Hz, double amplitude 1.5mm, 2 hours for each XYZ axis
Impact resistance  100m/s² 16ms pulse, X, Y, Z axis 1000 times each
Machine material aluminum alloy, plastic
